1500/2000/2500/3000kg载重 |
540/685mm全宽度 |
1150/1220mm叉子长度 |
| 技术参数Specifications | ||

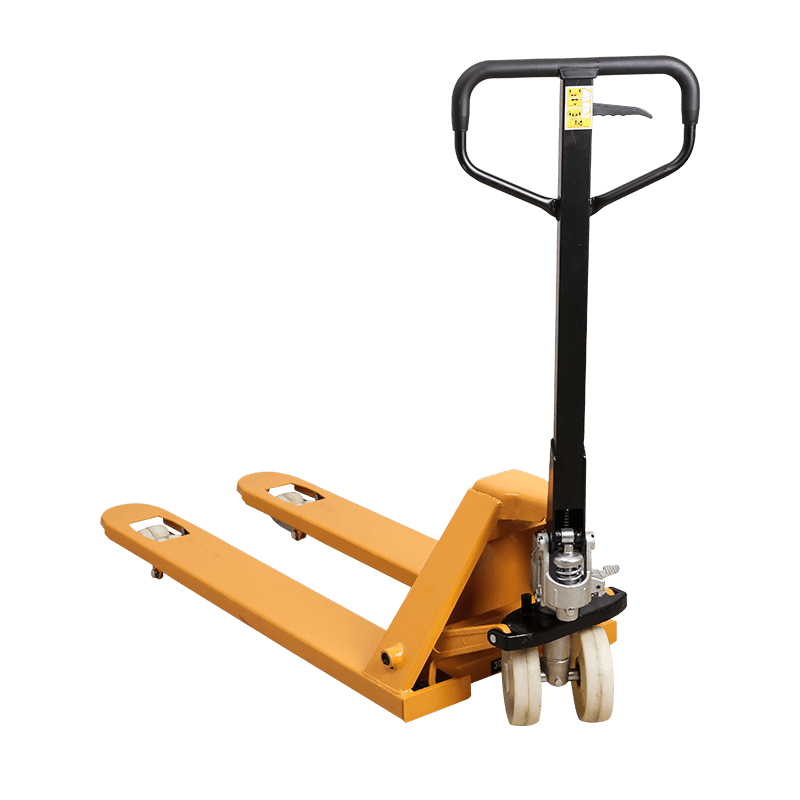

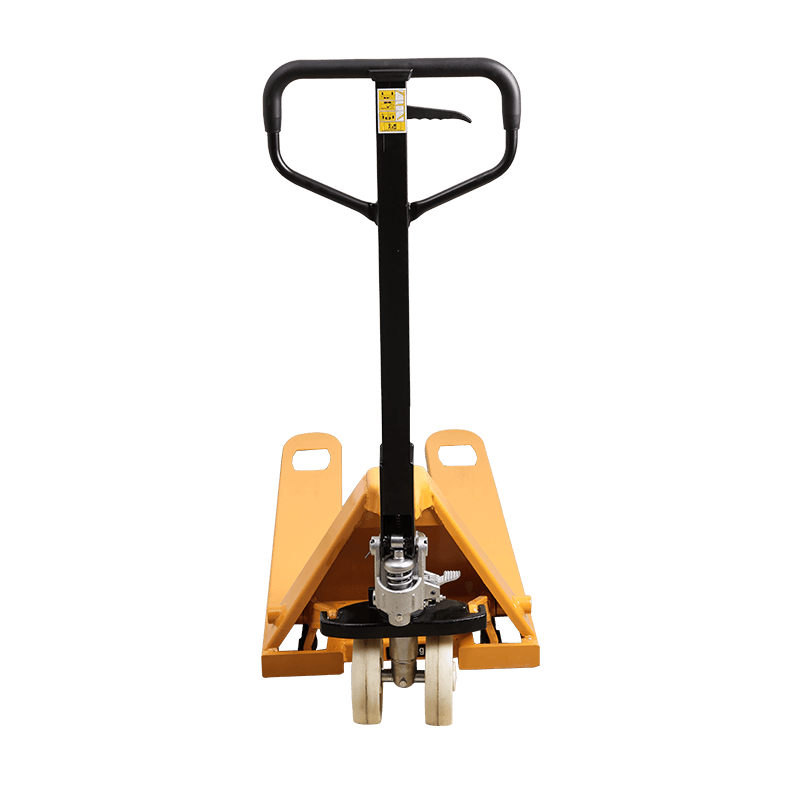

| 型号Model | CBY-BF | |
| 载重Load Capacity | kg | 1500/2000/2500/3000 |
| 最低高度Lowest Fork Height | mm | 85 |
| 最大提升高度Maximum Fork Height (H2) | mm | 200 |
| 全宽度(Outside Fork Spread(B) | mm | 540/685 |
| 叉子长度Length of the Fork(L2) | mm | 1150/1220 |
| 叉子宽度Width of the Fork(B1) | mm | 160x50 |
| 头部长度Head Length(L1) | mm | 395 |
| 前轮直径Dia.Of the Front Wheel | mm | 单Single Φ80x93/双double Φ80x70 |
| 后轮直径Dia.Of the Steering Wheel | mm | 180x50 |
| 轮子材料Material Of the Wheel | 尼龙/聚氨酯/橡胶 | |
| 手柄高度(mm)Height of handle from the ground(H) | mm | 1230 |
| 自重Net Weight | kg |
540Nylon-72kg / 685Nylon-80kg 540PU-80kg/685PU-88kg |
| 20"集装箱装箱数Q'ty in one 20'Container | 540 180 pcs / 685 144 pcs | |
